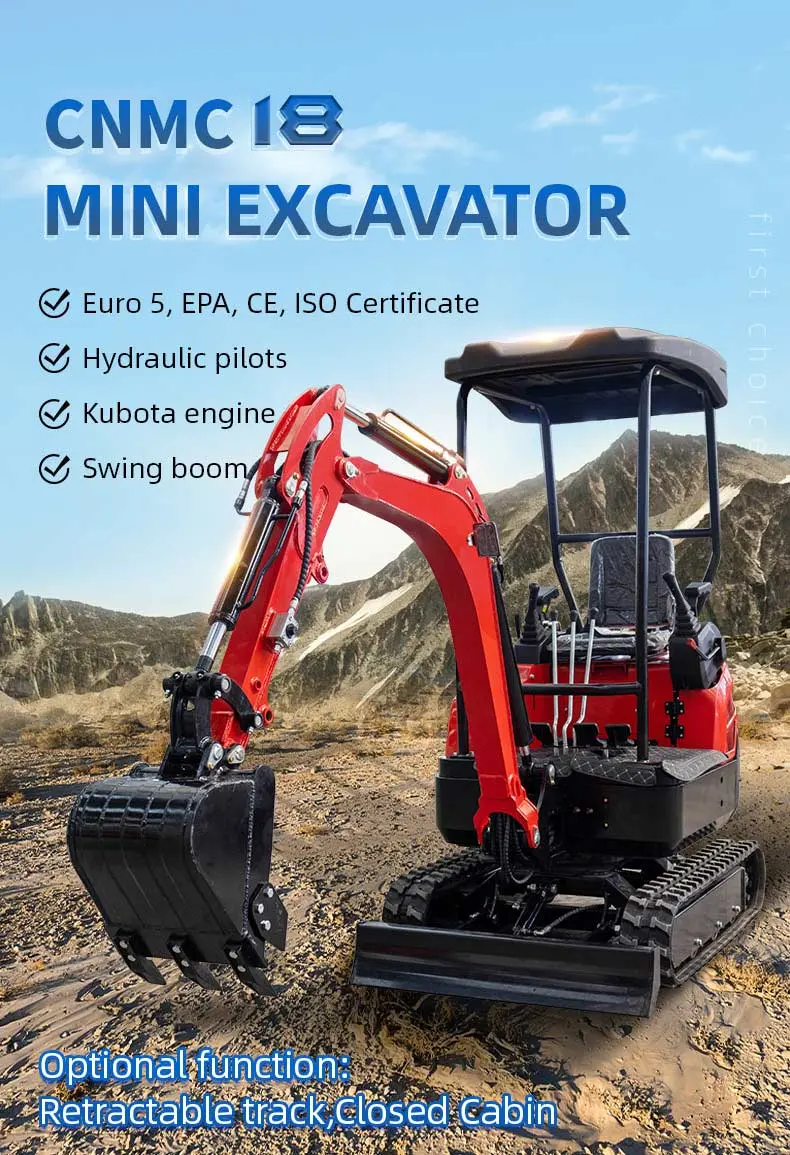

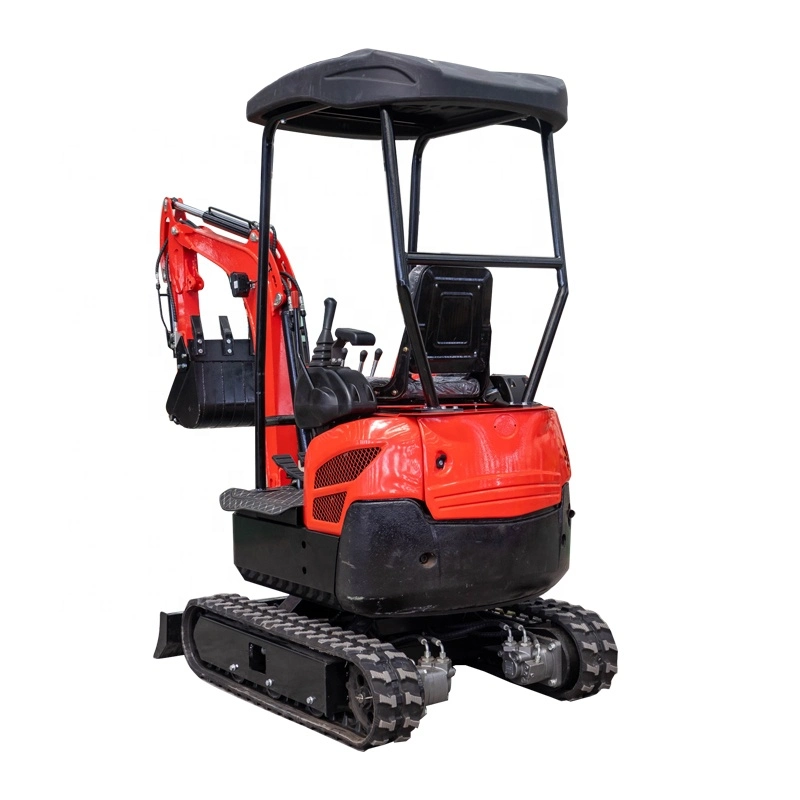

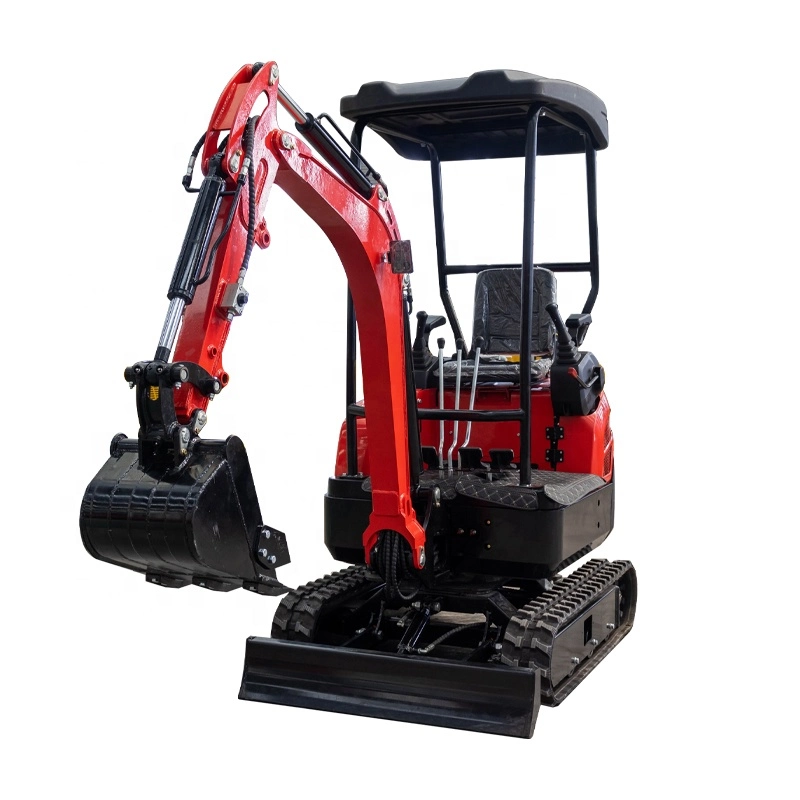

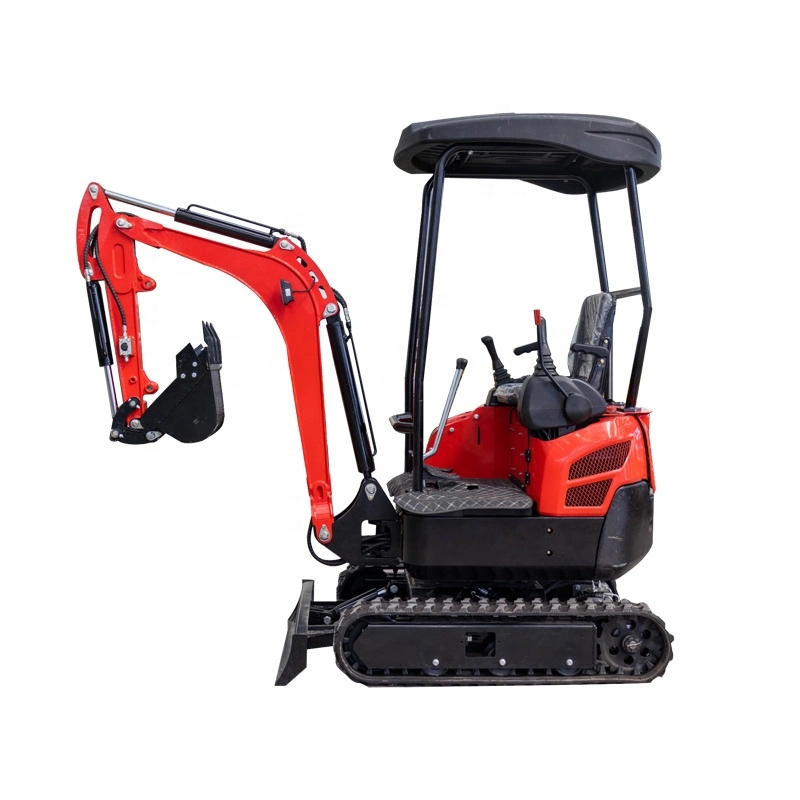

CNMC Mini Hydraulic Excavator Small Digger Machine

Advantages

It is used to restore the ground, break the concrete, and for cable casting, water pipe laying, planting, cleaning of river/ditch and construction project. It has several functions: excavation, breaking, ditch cleaning, drilling, bulldozing and ect.

◆Imported accessories to enhance the overall performance of the machine.

◆Signle-forging forming cylinder, not easy to break, built-in NOK seal.
◆Use thicker high-quality steel, apply plastic molding process, prevent rust and anti-corrosion.

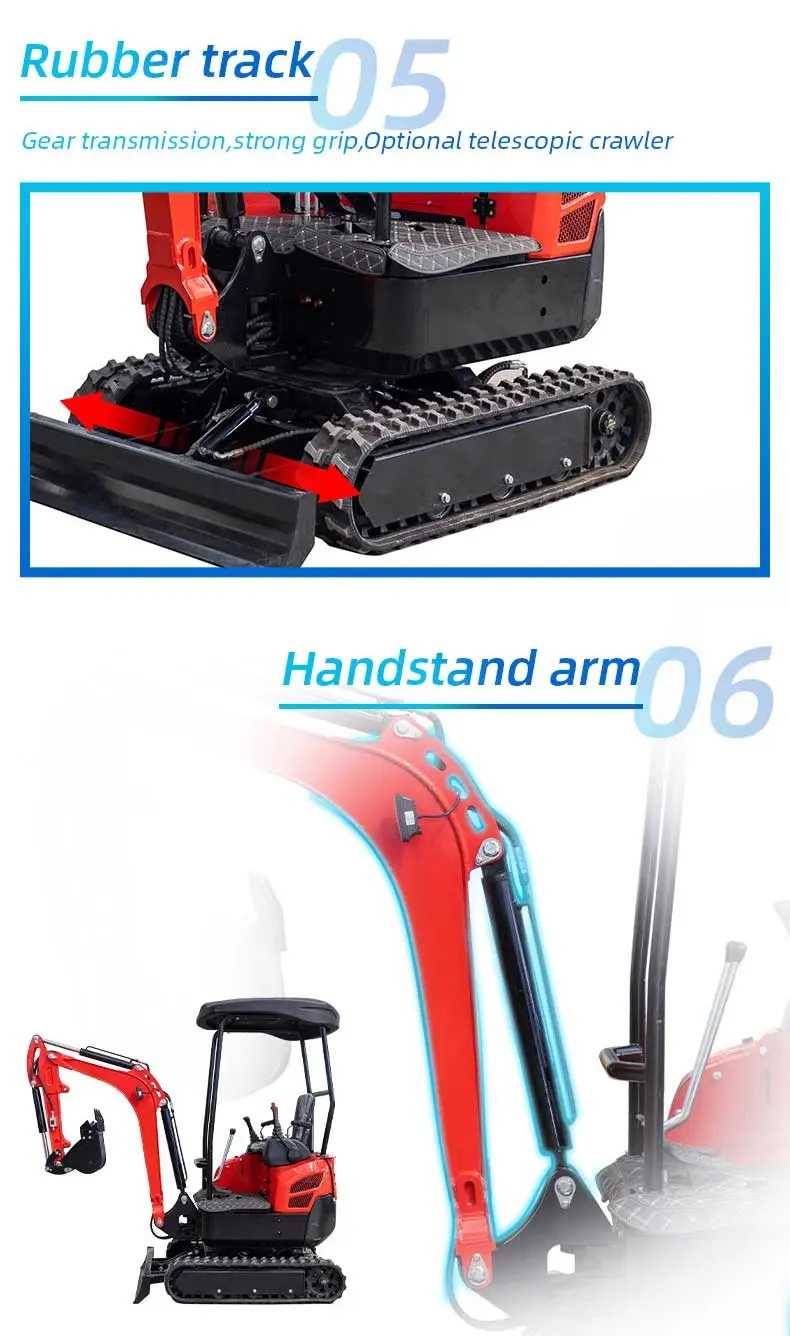

◆Engineering rubber track, fearless of harsh terrain;

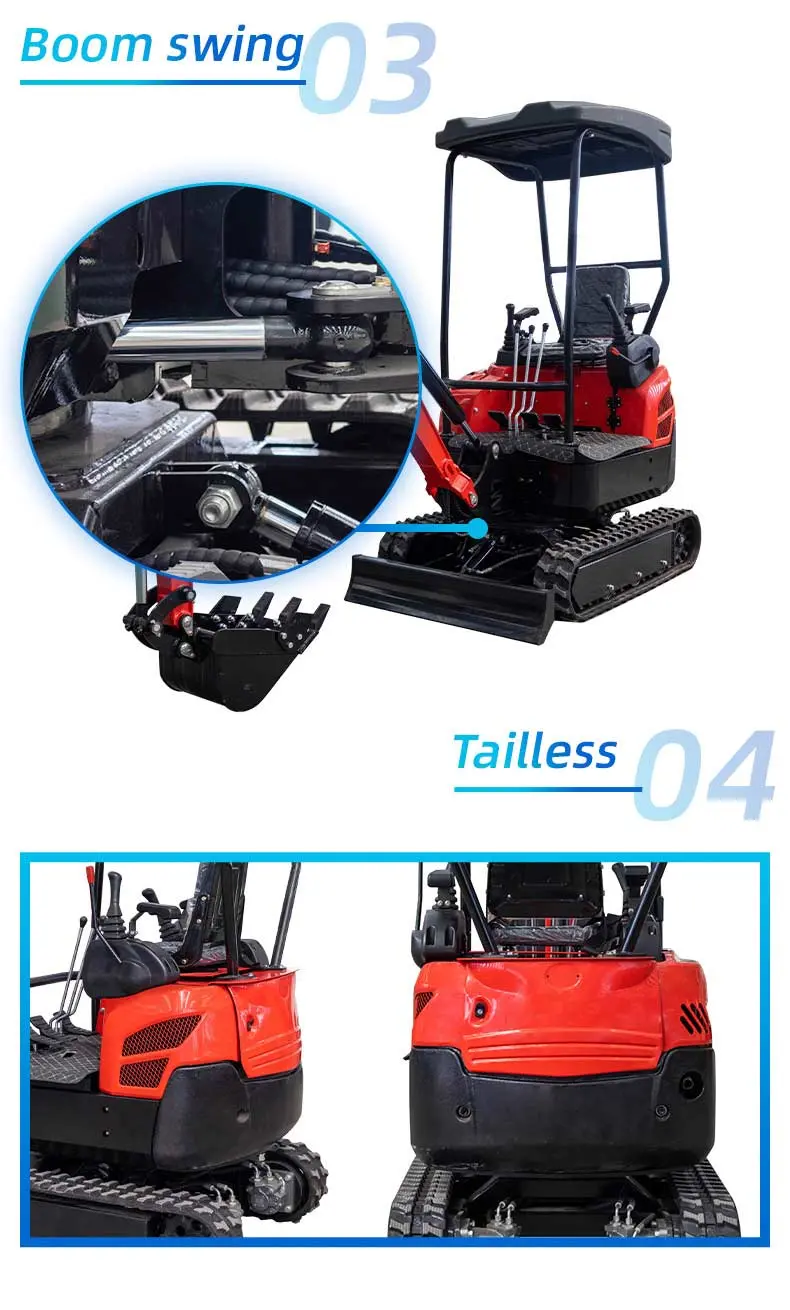

◆The 360-degree body rotates freely, and the smart body facilitates outdoor work.

Contact Now E-mail Telephone WhatsApp

Product Details

CNM-16 CE/EPA Mini Hydraulic Excavator small digger machine with Kubota engine

1) Mini crawler excavators have simple structure and compact design ,easy in installation and maintation.
2) Small digger excavator manufacturer adopt advanced world famous brand components in pneumatic parts ,electric parts and operation parts,1 ton and 3 ton new hydraulic mini excabadora prices are very cheap for sale.
3)Electric Escavatore diggers give full consideration to reduce the working oil consumption, to obtain maximum efficiency in all kinds of work site operation.
4)China 1.6Ton micro escavator escavadeira machine can provide auger, grab, hydraulic hammer, narrow bucket can be installed on this excavator, efficient and wide-range use.
5) The smallest excavadora is 0.8 ton chinese mini bagger ,it can 360 rotation and We still have a lot of wheel excavator.

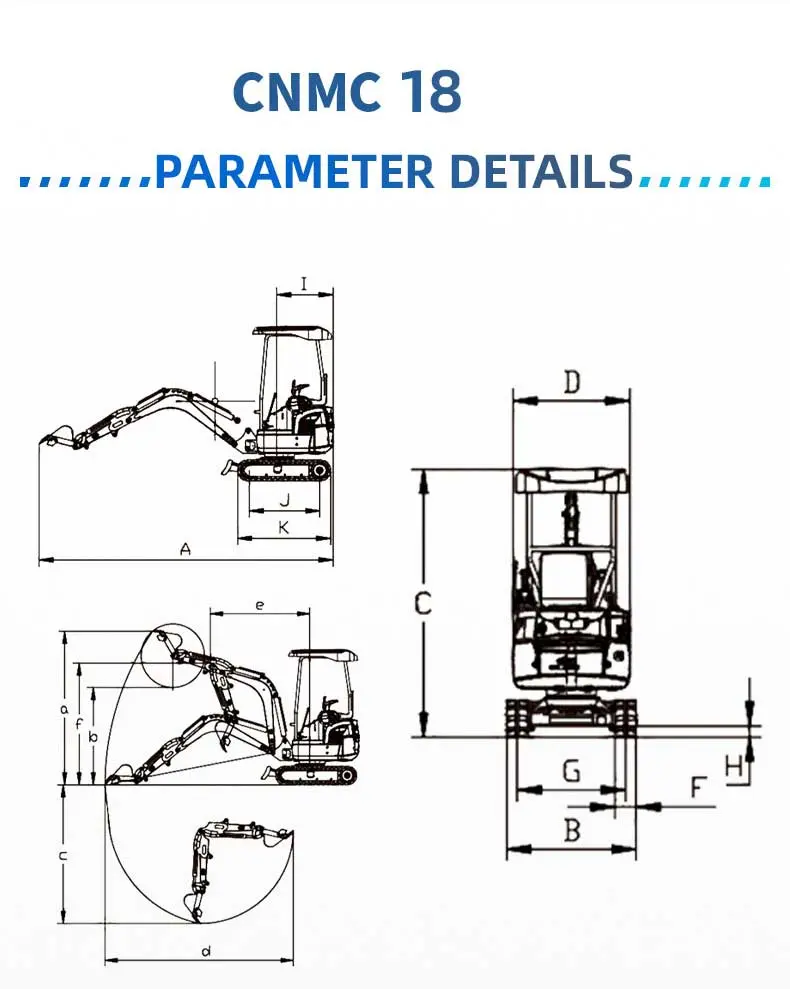

CNM-16 Mini Excavator Parameter

CNM-16
Overal size
(Overal legnth)A	4325/1655
(Overall width)B	1100
(Upper width)D	990
(Overall height)C	2272
(Standard track shoe width)F	180
(Track Gauge)G	920
(Min.ground clearance)H	119
(Tail turning radius)I	790
(Track ground length)J	1050
(Track length)K	1545
performance parameter
(Working weight)(KG)	1600KG
(Bucket capacity)M^3	0.03
(Power)	10.2KW/2500RPM
(swing speed)	12RMP
(Gradeability)	30degrees
Working Range
(Max digging height)a	2580
(Max.unloading height)b	1637
(Max. digging depth)c	2060
(Max. digging distance)d	3160
(Min.turning radius) e	1711
(Max. height at minimum turning radius)f	2048
Boom swing Angle(left)°	75
Boom swing Angle(right)°	45
Main parts

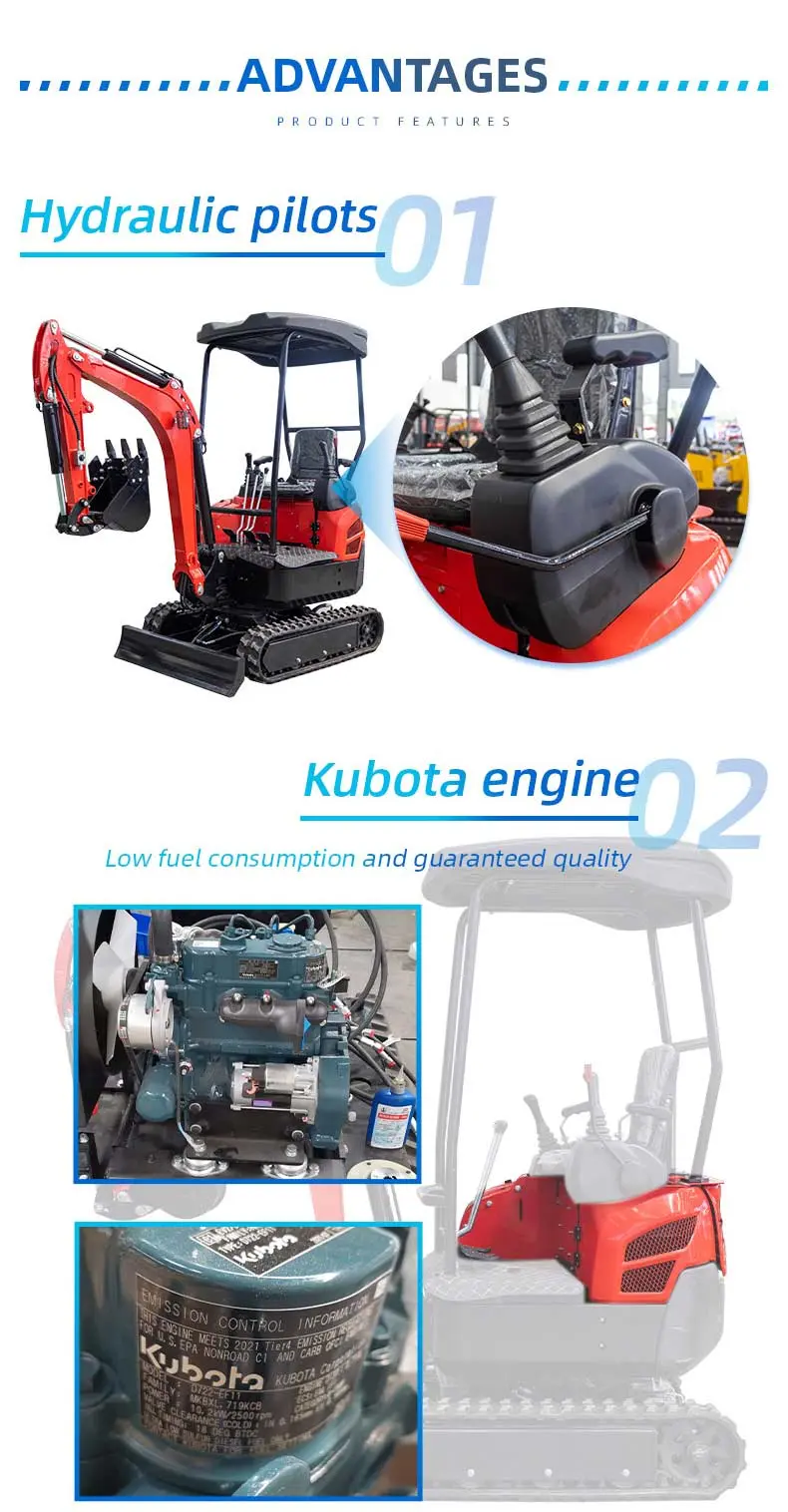

Engine	Kubota D722; KOOP 292
Main vavel	Beifang
