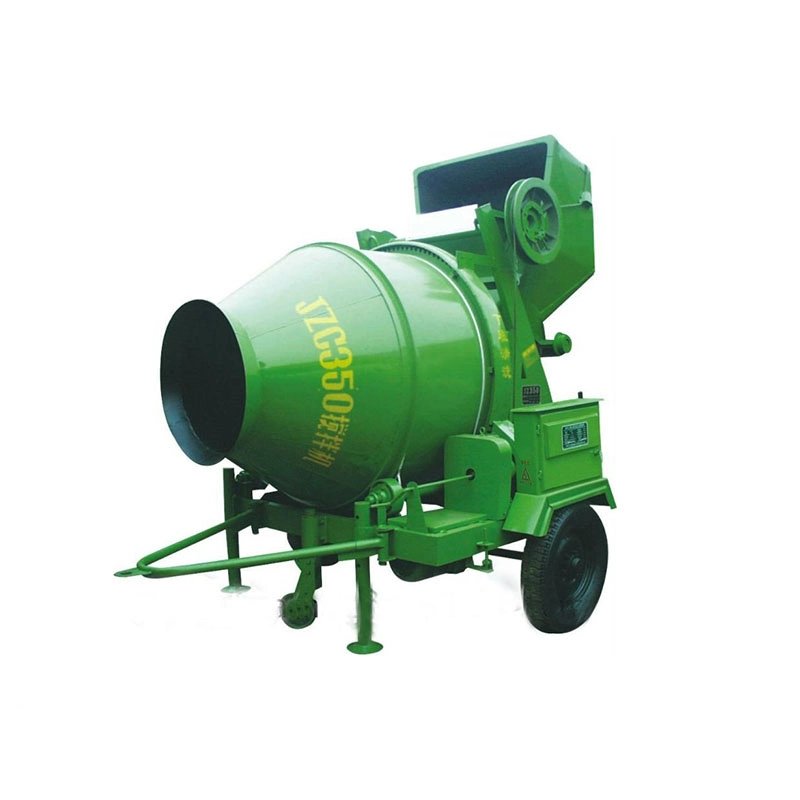

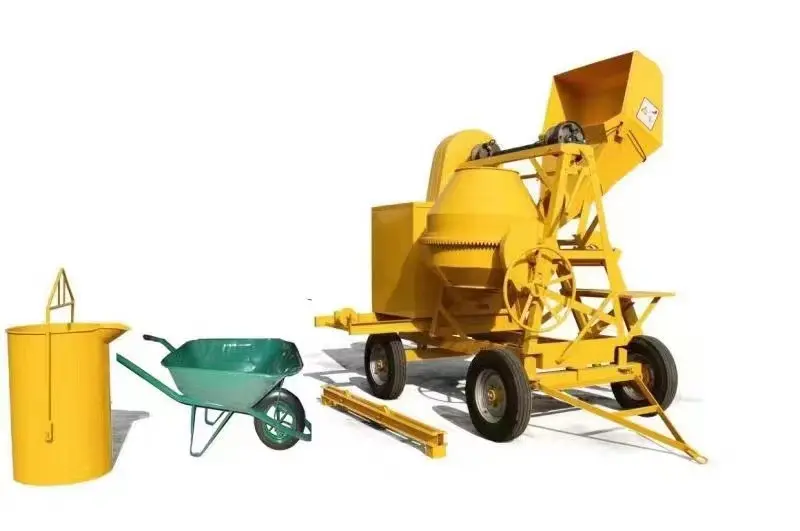

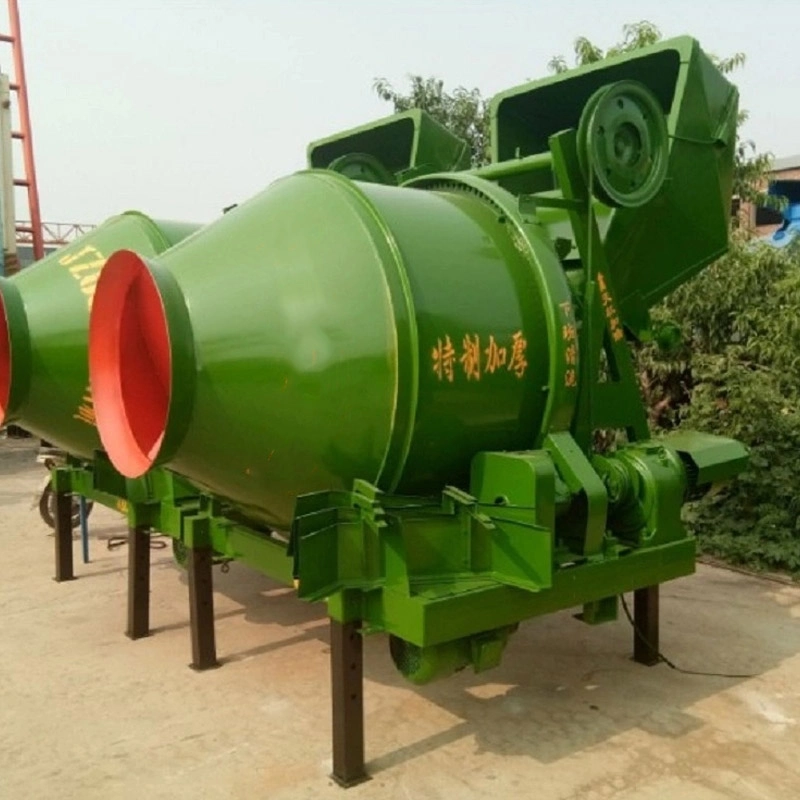

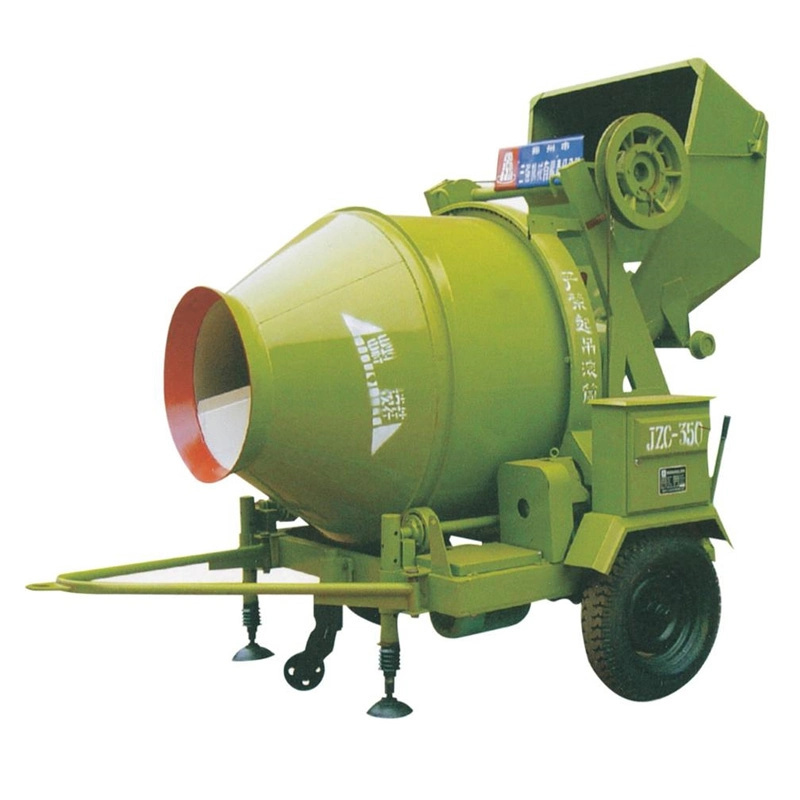

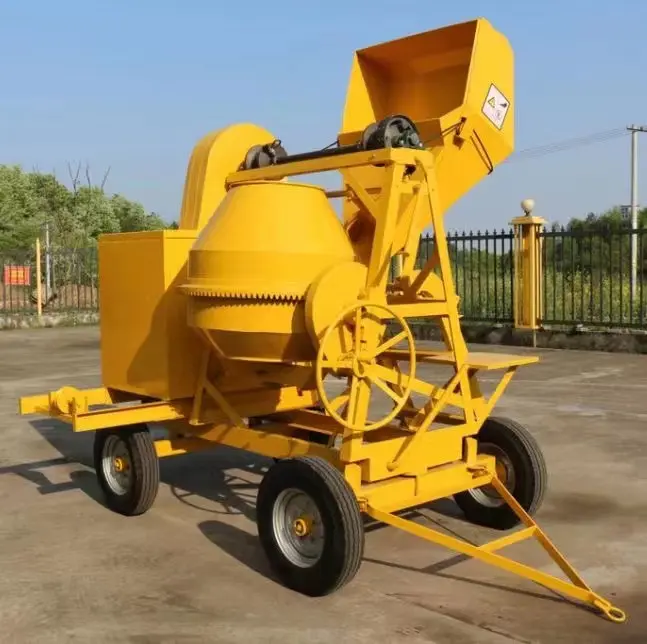

Concrete Mixer With Winch

1. Special casting or steel sheet gearing made in one piece;

2. Foldable frame for easy stock and transportation;

3.Swivels and tilts 360° for easy and complete discharge;

4. 100% copper wire motor for Durable working

5. Compact structure, smooth running.

Portable concrete mixer are the perfect solution for small projects around the home that require the use of cement. These small devices can be used for a wide range of projects, including repairing driveways, pouring cement patios and even making cement fixtures for the lawn and garden.

Contact Now E-mail Telephone WhatsApp

Product Details

Main Features

1.All-steel construction, Mini Concrete Mixer has long life span.

2.Large wheels, It's easy to move the Mini Concrete Mixer to anywhere.

3.Diesel/gasoline/electric motor,optional as customers' requirement. Mini Concrete Mixer is powerful.

4. Cast iron gear for Mini Concrete Mixer steady and silent working.

5.Spray painted surface,colour as your request.

6.EPA certificated wheels,wheels size:520mm.

7.Guarantee time:ONE YEAR warranty

8.water supply mode:direct input

9.Discharging:semi-automatic

Concrete Mixer With Winch

Main performance parameters	Drum Capacity	500L
	Loading Capacity	400L
	Discharging Capacity	320L
	Batches Per Hour	20-30H
	Bags of Cement per Batch	1 (50kg/bag)
	Productivity	6-10m³/h
	Drum Size	Φ950*900mm
	Drum Rotation Speed	25-30Rpm
	Max.Size of Aggregate	60mm
	Drum Thickness	3mm
	Tyre Size	4*4.00-12
Engine	Engine brand	CHANGWU
	Type	Single Cylinder, Horizontal ,4-stroke ,Water-cooled Diesel Engine
	Rated Rotating Speed	2600RPM
	Power	16Hp
